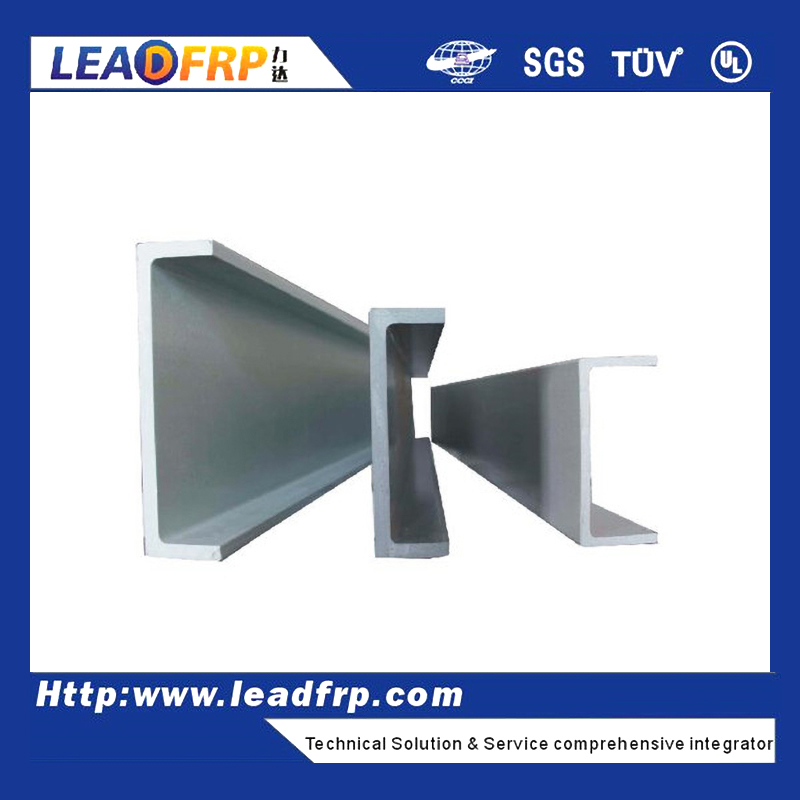

frp channel
Click to enlarge

Fiberglass Channel

FRP Winding Tube

Unit Diamter
mm 14
mm 16
mm 18
mm 19
mm 27
mm 29.3
mm 30
mm 32
mm 33
mm 35.5
mm 36
mm 37
mm 38
mm 40
mm 43.5
mm 44
mm 45
mm 46
mm 47.5
mm 48
mm 50
mm 51
mm 52
mm 53
mm 53.5
mm 54
mm 55
mm 56
mm 58
mm 60
mm 61
mm 61.3
mm 62.2
mm 64
mm 66
mm 67
mm 68
mm 70
mm 72
mm 73
mm 74
mm 76
mm 80
mm 81
mm 83
mm 86
mm 86.5
mm 87.3
mm 88
mm 89
mm 90
mm 91
mm 92
mm 94
mm 100
mm 107
mm 108
mm 112
mm 114
mm 115
mm 131.7
mm 140
mm 150
mm 154.2
mm 160
mm 180
mm 190
mm 196.85
mm 248
mm 270
mm 300
mm 310
mm 350
mm 380
mm 420
mm 520
Size Guide
Categories: , ,
Description

Steel and Structural Steelwork cannot stand up to the strength of structural Fiberglass Channel over time. Steel channel rusts when exposed to weathering and chemicals, butfiberglass channel and structural members are highly corrosion resistant.

Fiberglass Channel Applications:

  • Fiberglass Channel is excellent for harsh environments subject to chemical exposure, such as outdoor walkways on drilling platforms, in WWTP water treatment plants, in livestock facilities and anywhere you require secure and durable walking surfaces. These structures will consistently outperform rust-prone steel structures where moisture is present.

Fiberglass Channel Features:

  • Strength – Stronger than steel shapes, pound-for-pound in lengthwise direction.
  • Corrosion Resistance – Resists most acids, caustics and salts.
  • Lightweight – Weighs 75% less than structural steel.
  • Low Maintenance – does not require constant de-rusting and repainting.
  • Dimensionally Stable
  • EMI/RFI Transparent
  • Fire Retardant

Size in stock (can be customized if not in the list):

Unit A B C (Thickness)
mm 34 70 6
mm 35 20 2.5
mm 38 24 3
mm 43 20 2.5
mm 48 30 3
mm 50 15 3.2
mm 50 22 3
mm 50 22 8
mm 60 49.5 4.5
mm 80 27.8 2.5
mm 80 27.8 3
mm 80 30 3
mm 82 28 2.65
mm 82 28 3
mm 87 30 3.25
mm 87 30 5.3
mm 90 50 9
mm 100 100 5
mm 110 25 2.8
mm 120 50 6
mm 120 60 6
mm 152 42 10
mm 153 28.5 3
mm 153 28.5 3.8
mm 160 50 8
mm 200 50 10
mm 300 75 12
mm 330 25 3.5
mm 450 25 3.5
inch 1 1 1/8
inch 1 1/2 1 3/16
inch 1 1/2 1 1/2 1/4
inch 2 9/16 1/8
inch 2 7/8 1/4
inch 3 7/8 1/4
inch 3 1 3/16
inch 3 1 1/2 1/4
inch 3 1/2 1 1/2 3/16
inch 4 1 1/16 1/8
inch 4 1 1/8 1/4
inch 4 1 3/8 3/16
inch 5 1 3/8 1/4
inch 5 1/2 1 1/2 3/16
inch 5 1/2 1 1/2 1/4
inch 6 1 5/8 3/16
inch 6 1 5/8 1/4
inch 6 1 11/16 3/8
inch 8 2 3/16 1/4
inch 8 2 3/16 3/8
inch 10 2 3/4 1/2
inch 12 3 1/2
inch 14 3 1/2 3/4
inch 18 2 3/16 3/16
inch 24 3 1/4

Hot Tags: Fiberglass Channel, manufacturers, suppliers, factory, price, for sale

frp channel size

FRP vs Traditional Materials

Traditional building materials have their place. But for harsh, corrosive environments, FRP is a smart choice. Here’s how FRP compares to several traditional options

frp performance parameter comparison scaled

Factory Tour

factory

At LEADFRP, we believe that fiber reinforced plastic (FRP) products are the choice of the future. Compared with traditional materials such as steel and aluminum, it has excellent performance and service life.

LEADFRP provides a series of high-strength fiber reinforced plastic products (FRP), which are designed and manufactured to provide long-lasting performance in highly corrosive environments, while having the advantages of light weight and high dielectric strength compared with traditional structural materials.

Since 2001, we have provided our customers with innovative, high-quality composite designs and materials through two strategic offices/factories located in the United States and China. It is here that we provide turnkey solutions to take your product from concept to design, to mold calculation, manufacturing, and finally to installation. [More about manufacturing]

leadfrp factory
leadfrp factory

We own 5 acres (20000 square metre) standard plants, 80 sets of advanced various manufacturing and machining equipments, 120 sets of assembly pultrusion production line, including one 1000 kN tensile strength machine and one 200 kN bending and torsion machine. We also can proceed basic property test of different kinds of composite insulation materials according to GB, ASTM, etc standards. Our products passed TUV Rheinland type test and UL type test.

LEADFRP strictly carry out standardized, scientific and normalized management mode. We fully implement ISO9001 quality management system, ERP managing system and 6S management mode through the whole service cycle of contract signing, production, process inspection, finished product ex-factory, after-sales service, which outstandingly reflect ‘Quality is the Life of Enterprise’. We have ISO9001, ISO14001 and ISO45001 identification.

Technology in LEADFRP:

Production Process:
Pultrusion, all Moulding type, Laminating, Casting Forming.

Feature Classification:
Food Grade, Flame Retardant, Conductive Type, anti-Corrosion, High Strength, Specific Surface.

Resin Types:
Epoxy, Polyester, Phenolic, Polyurethane, Acrylic, Polystyrene, Polypropylene, Polyethylene.

Fiber Type:
Carbon, E-Glass, ECR Glass, AR-Glass,Tow, Veil mats, Woven fabrics, Chopped strand mat.

Surface Avaliabe:
Glassfiber, Polyester, Special Type

Colors Avaliabe:
We recommend referring to RAL color standard

Size Avaliabe:
Customize Supported

Research and Development

With a 10,000 sqft R&D laboratory and full-time R&D staff, LEADFRP can perform most testing procedures, material qualifications and quality experiments. These resources provide LEADFRP, its customers and suppliers technical expertise that is unmatched in the composite industry. The following is a summary of LEADFRP’s technical capabilities.

  • Decades of experience in mechanical testing of common to exotic reinforcements.
  • Deflection testing a composite crossarm.
  • Composites analysis capabilities including Finite Element and Classical Laminated Plate Theory using in-house generated lamina data.
  • Rapid Prototyping: In-house 3D printing capabilities offer R&D lab the ability to quickly create test fixtures and concept prototypes.
  • Dedicated laboratory pultrusion machine managed and operated by a full time Research and Development Engineer and dedicated machine operator.
  • Competency in conducting Design of Experiments to reduce testing time.
  • Material testing machines capable of loads as high as 220,000 lbs-force.
  • Full Scale Testing Machine: 3-Point Bend Test Machine capable of applying loads up to 30,000 lbs-force on 22-foot clear spans.
  • Environmental Chamber for elevated temperature coupon testing.
  • Weatherometer and material conditioning capabilities including programmable UV, temperature and condensation.
  • Laboratory machine shop to prepare ASTM test coupons and custom test specimens.
  • Custom design and testing capabilities, including custom fixture design and setup, custom laminate designs and access to our in-house machine shop to fabricate test fixtures.
  • Dedicated environmentally controlled Mechanical Test Lab. Dedicated environmentally controlled Electrical Test Lab.
  • Rheology/DMA to determine glass transition temperature and other viscoelastic properties of resin mixes as well as solid composites.
  • Viscosity and cure (210°F gel) testing capabilities for neat resins and resin mixes.
  • Color matching capabilities for resins, finished pultrusions and topcoats.
